DeLAEvery V4N PCB

$40.00

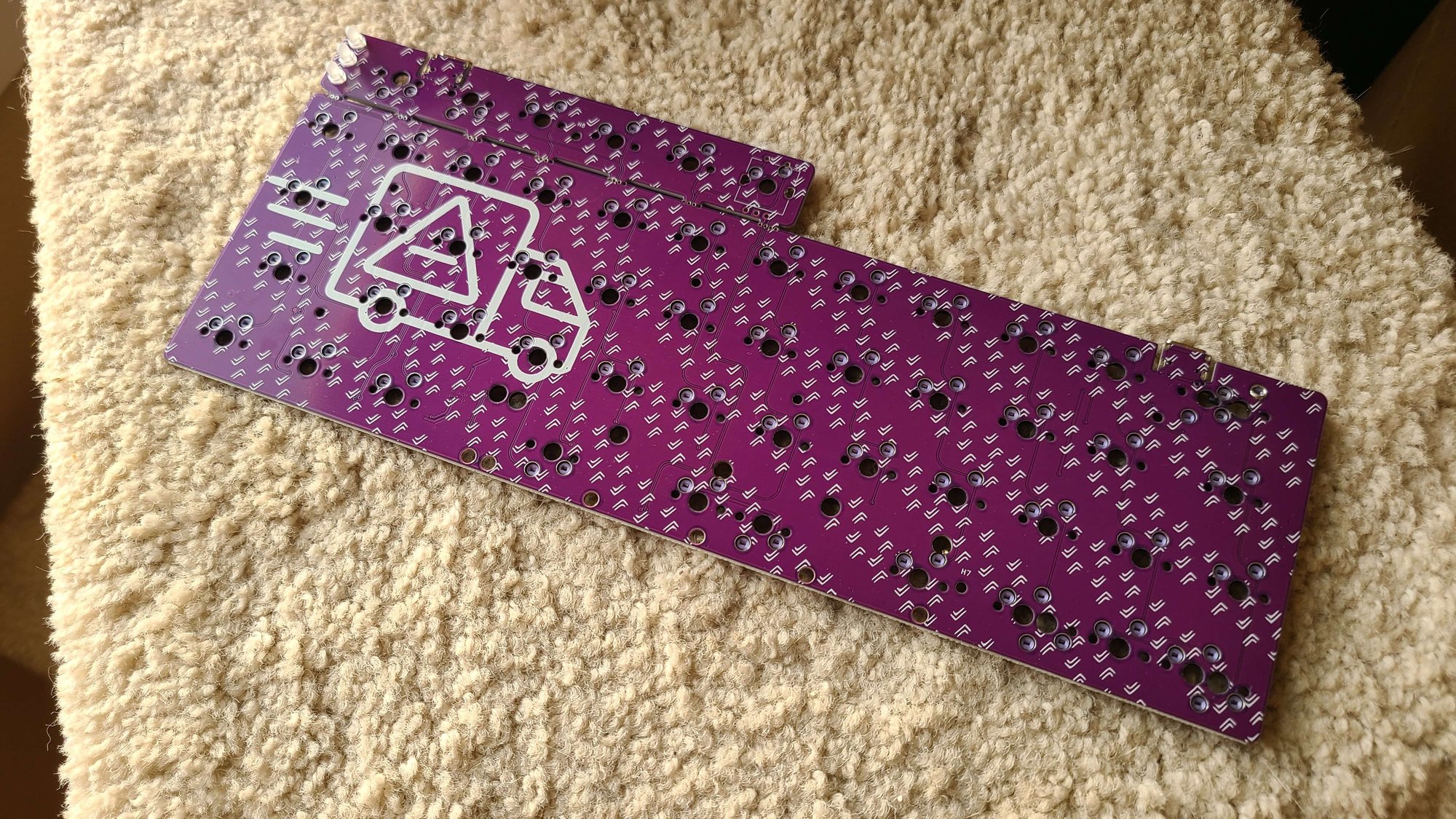

This is a Monorail style minivan/V4N PCB with the following features:
-LAE support

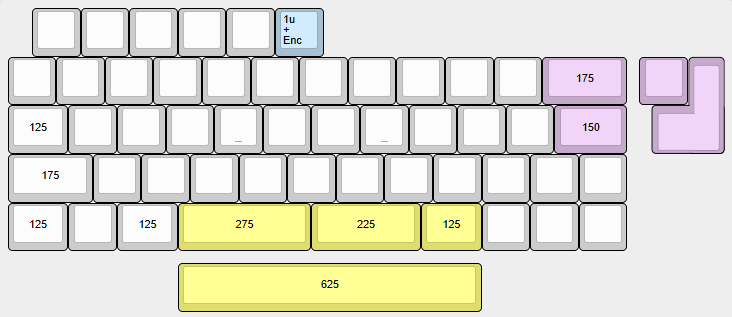

-Minisub layout
-HHKB support for some niche cases
-Spacebar support: 6.25u big bar or 2.75u/2.25u/1.25u

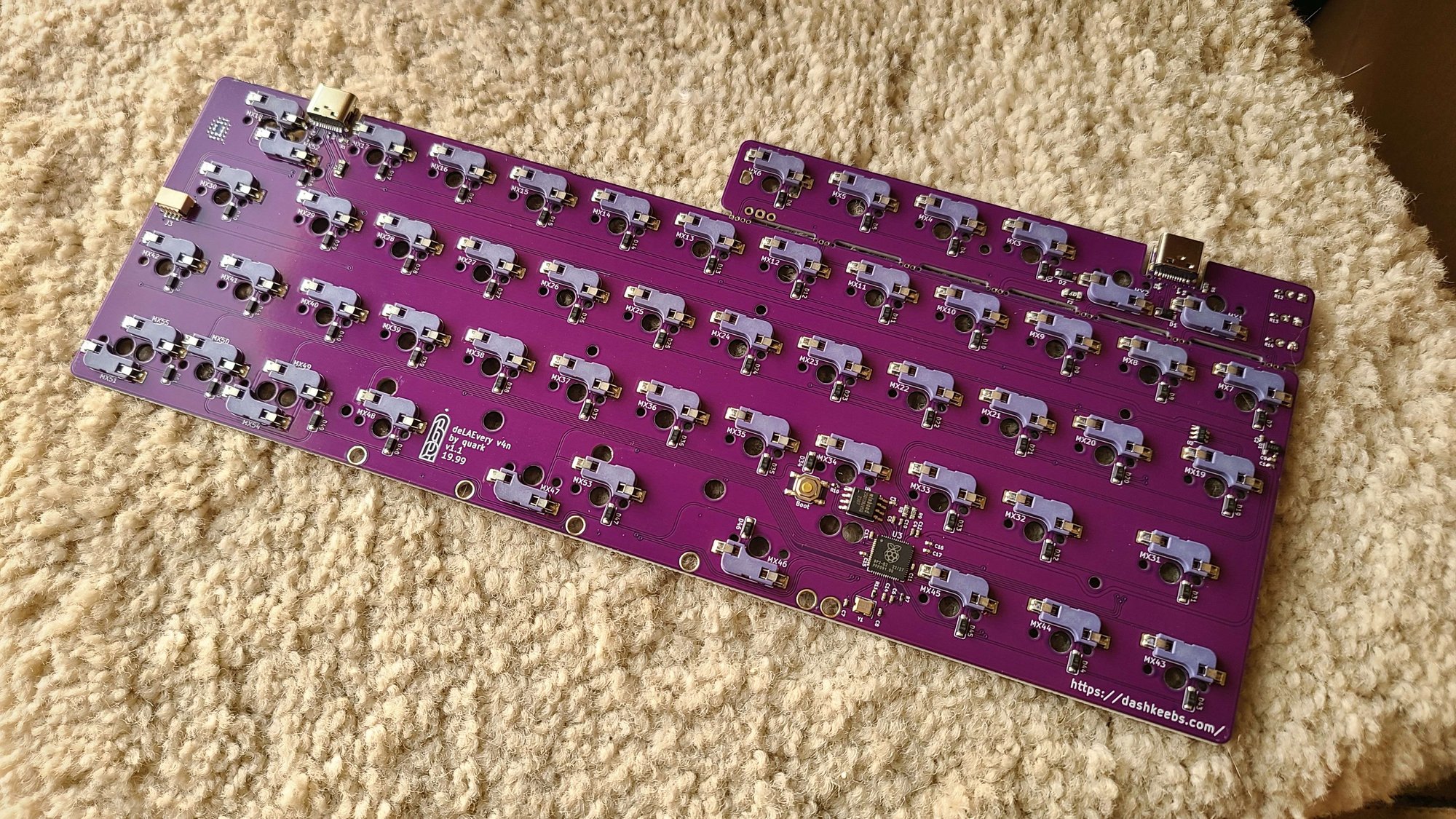

-Hotswap (Presoldered)
-2x snappable USB C connectors allowing flexibility to fit in existing cases
-3x presoldered white 3mm LEDs
-LEDs use binary to indicate the layer
-Has 7 layers
-Snappable V4N/number row
-JST connector for use with daughterboards
-RP2040
-QMK/Vial firmware preflashed
-Standard minivan tray mount mounting points
-Encoder support in the 6 position on the V4N row
-3d printed plate options can be found here: https://www.dashkeebs.com/product/delaevery-v4n-thicc-plates

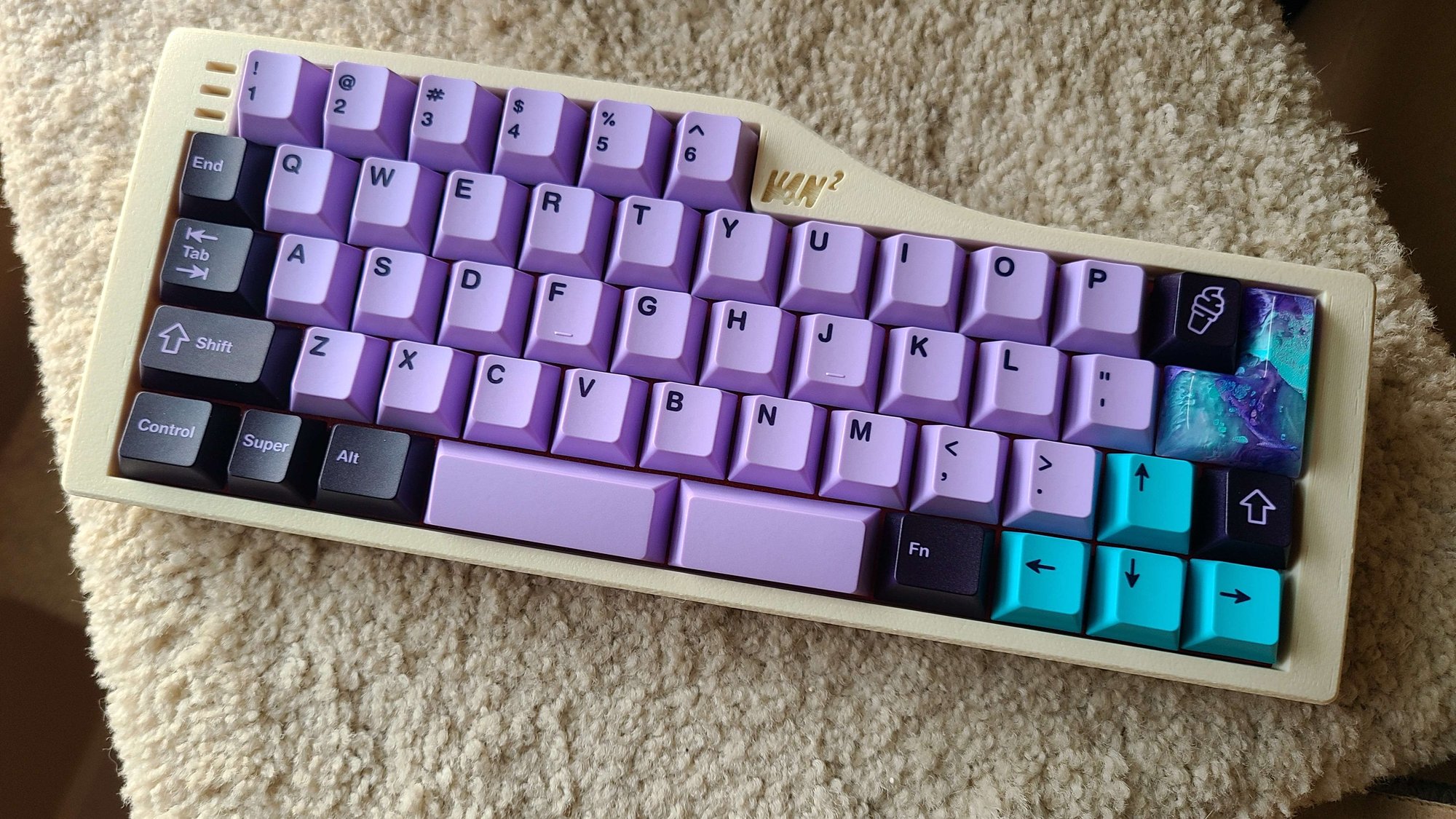

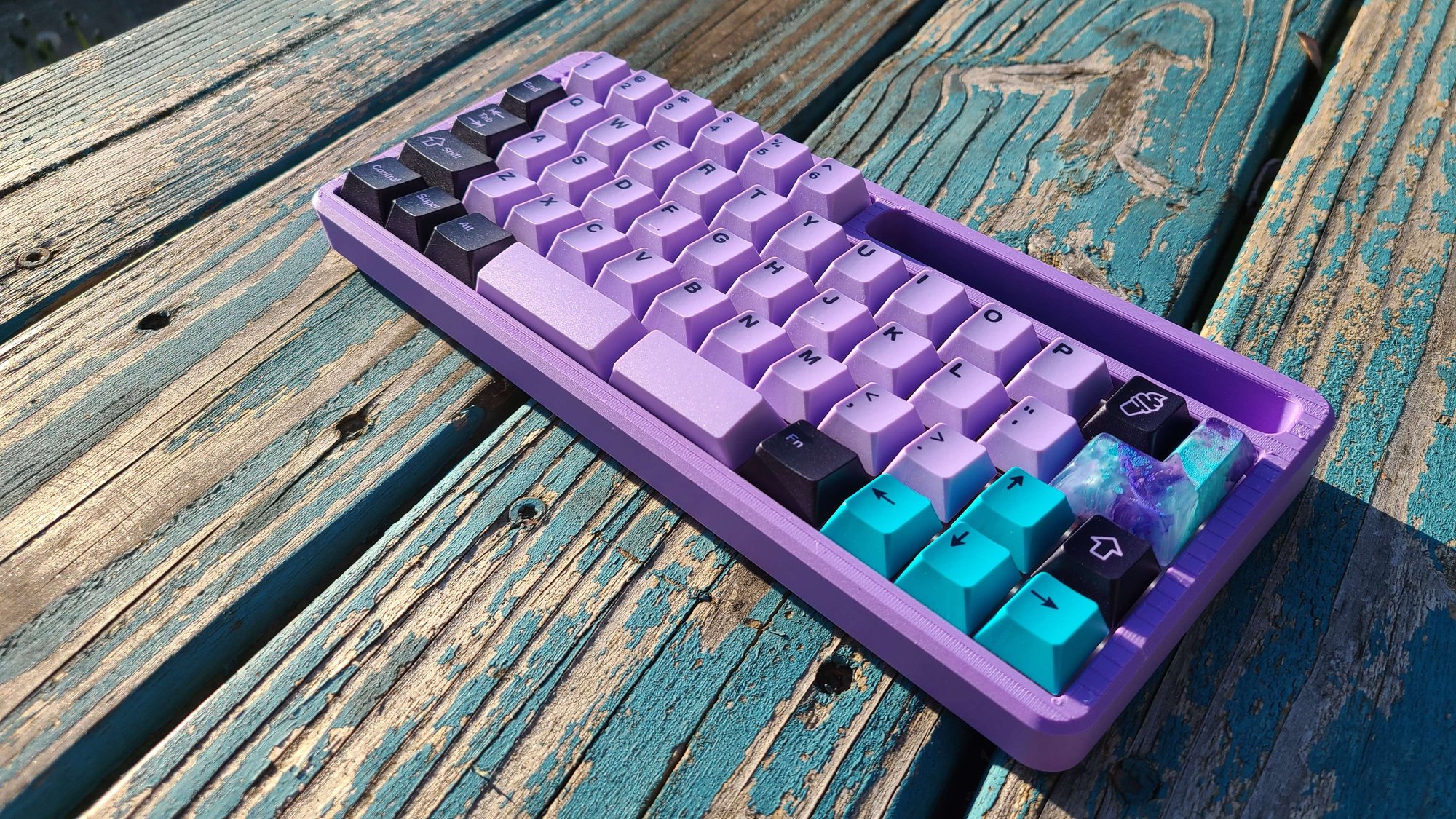

The goal for this PCB is to be as compatible with existing cases as possible
Hotswap was a choice to cater to mass appeal and easy entry as a beginner oriented option
3d printed thick plates were the only viable option I could think of as there are too many plate options to stock in FR4

**Ezmate to JST cables will be needed to drop into V4N4G0N cases**

I am working on finding a solution to the above as the only cables long enough I can find online are here and the 35mm would be grossly oversized: https://keebd.com/en-us/products/daughterboard-molex-jst-cables

Shoutouts to Quark for designing the PCB and all friends who helped bring this to fruition. I couldn't do this without y'all ♥
