TEAQAZ
TEAQAZ was created as a way to use the Sneakbox miniISO key
Asymplex also offers the miniISO

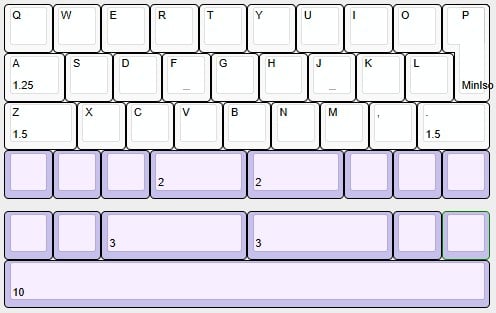

This board is 10u, uniform stagger, leafspring tadpole mount, forced solder, forced miniISO (TAE), and has a 6 degree typing angle.
It was meant to be TAEQAZ (Tiny ass enter), but I typo'd on the file name and silk. Whoops!
This kit has the following features:
- TEAQAZ PCB - STM32 and preflashed with VIAL
- TEAQAZ 3D printed case - Case is printed at 25% cubic infill

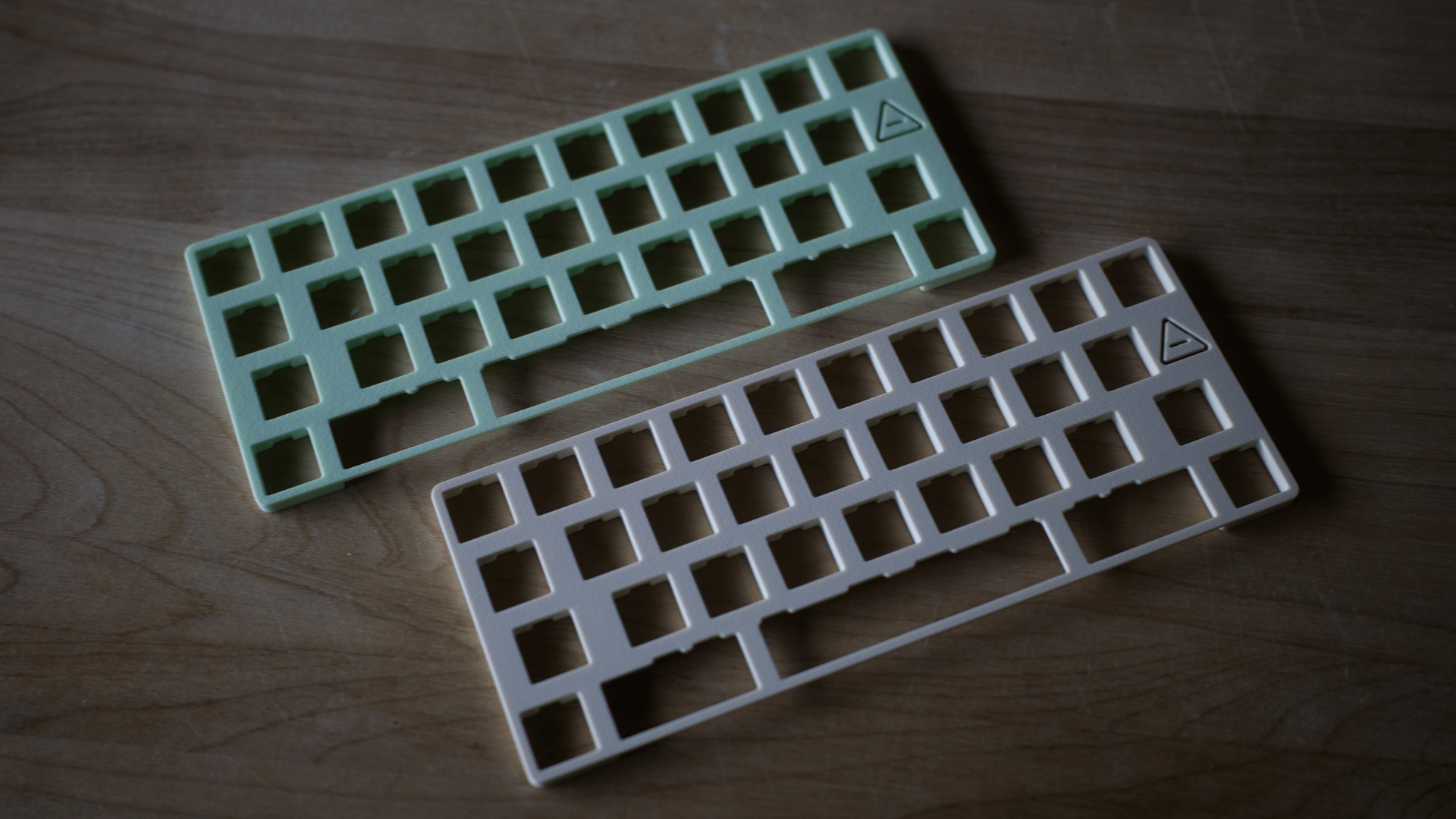

- 3d printed thicc plate - Thicc plate is printed at 100% infill
- 8x 50a tadpoles installed
- C3 daughterboard installed
- JST cable included
- Wheel weights installed
- Heat set inserts installed
- M3 Screws installed
- SKUF feet installed
- The 2u keys do not have stabilizer cutouts on the PCB as they are not needed :)
- The 10u bar has stabilizer positions set in the 7u positions
All you will need to source yourself are switches, stabilizers (gross), and keycaps!
Disclaimer:
This case will be printed to order and I can print ~1 full case per day M - F
****If you order this case you understand there may be a queue of cases that need to be printed and that your case will not ship out until your case is complete****
****This case is 3D printed and may have minor imperfections/visible layer lines. This will be handled as best possible and no cases with major issues will be sent to customers****
